nice solar wall panel cell silicon panel solar 500w

  • >=1 Watts
    $0.23
Material:
Monocrystalline Silicon
Max. Power:
320 325 330 335 340 350 355 360 365 370
Number of Cells:
72
Lead Time:
Quantity(Watts) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Watts)
Customized packaging (Min. Order: 1 Watts)

More

Graphic customization (Min. Order: 1 Watts) Less
Samples:
$0.23 /Watt | 1 Watt (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
LUXEN
Model Number:
LNSF-370M
Size:
1956*992*40
Panel Efficiency:
19.06%
Certificate:
TUV/CE/IEC/PID/ISO, etc
Warranty:
10years, 25 Years Output Power Guarantee
Type:
Standard Solar Panel
Product name:
Monocrystalline solar panles
Solar cell:
156.75*157.4mm
Application:
Solar Power System
Junction Box:
IP 68 Rated
Frame:
Anodized Aluminium Alloy
Front Glass:
Glass 3.2mm tempered
Packaging & Delivery
Packaging Details
carton box into pallet
Picture Example:
package-img
package-img
Lead Time :
Quantity(Watts) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description

Hot sale 380w mono infrared thermodynamic solar panel PV



Product Description

MONO
STC LNSE-350M LNSE-355M LNSE-360M LNSE-365M LNSE-370M
Maximum Power(Pmax) 350W 355W 360W 365W 370W
Open Circuit Voltage(Voc) 47.26V 47.61V 47.96V 48.31V 48.65V
Short Circuit Current(Isc) 9.61A 9.66A 9.72A 9.77A 9.83A

Voltage at Maximum Power

                              (Vmpp)

31.61V 38.83V 39.05V 39.26V 32.47V

Current at Maximum Power

                               (Impp)

9.07A 9.14A 9.22A 9.30A 9.37A
Module Efficiency(%) 18.04% 18.30% 18.55% 18.81% 19.07%



POLY
STC LNSE-320P LNSE-325P LNSE-330P LNSE-335P LNSE-340P
Maximum Power(Pmax) 320W 325W 330W 335W 340W
Open Circuit Voltage(Voc) 45.70V 46.03V 46.36V 46.68V 47.00V
Short Circuit Current(Isc) 9.17A 9.23A 9.30A 9.36A 9.43A

Voltage at Maximum Power

                              (Vmpp)

36.95V 37.19V 37.39V 37.59V 37.79V

Current at Maximum Power

                               (Impp)

8.66A 8.74A 8.83A 8.91A 9.00A
ModuleEfficiency(%) 16.49% 16.75% 17.01% 17.26% 17.52%

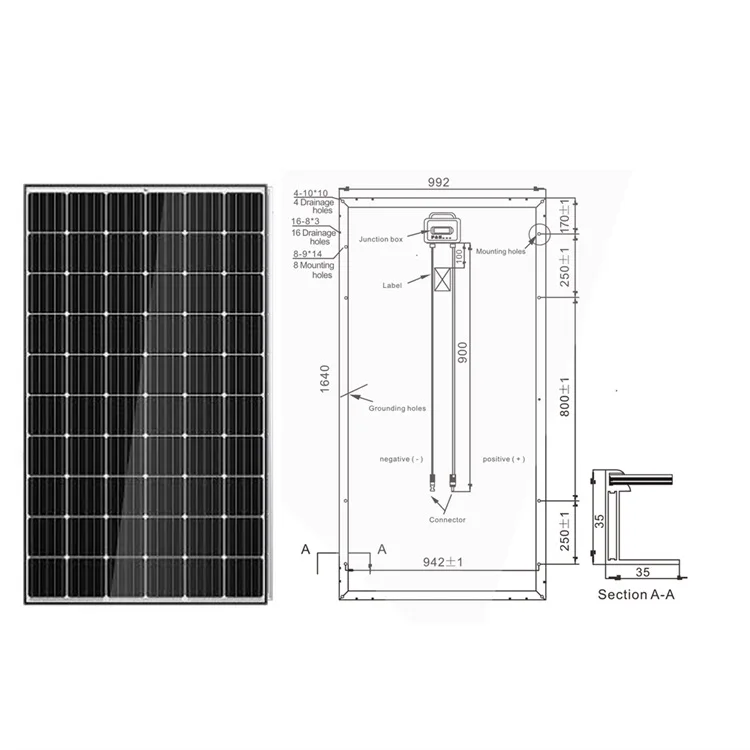

Mechanical Characteristics

Solar Cell Mono/Poly
No.of Cells 72(6x112)
Dimensions 1956x992x40mm
Weight 23.0kgs
Front Glass 3.2mm tempered glass
Frame Anodized aluminium alloy
Junction Box IP67/IP68 rated(3 by pass diodes)
Output Cables 4.0mm² ,
symmetrical length
(-)900mm and (+)900mm
Connectors compatible
Mechanical load test 5400Pa
Operating Module Temperature -40°C to +85°C
Maximum System Voltage 1500V DC(IEC) 1000V DC(UL)
Maximum Series Fuse Rating 20A
Power Tolerance 0/+5W
Temperature Characteristics

Nominal Operating Cell Temperature

 (Noct)

45±2°C
Temperature Coefficient of Pmax -0.36%/°C
Temperature Coefficient of Voc -0.29%/°C
Temperature Coefficient of Isc 0.05%/°C





Packaging & Shipping



Company Information



FAQ

1. Are you trading company or factory?
We are factory loacted at Suzhou,China. 20 minutes to Shanghai by High-speed rail.



2.How about the quality and price?
We use brand JASOLAR cell to guaranteed quality stability.And we can negotiate the price depends on the quantity.



3. When can you send the PV module if I order now?
If less than 3*20'GP containers, can be sent in one week.
If more than 3*20GP containers, can be sent in one month.
The shortest delivery time record is in five days with 5*40'HP containers.



4.How to pay?
We accept WesternUnion,TT,HSBC. And we accept L/C.
If you need other ways, please contact us for sure.
